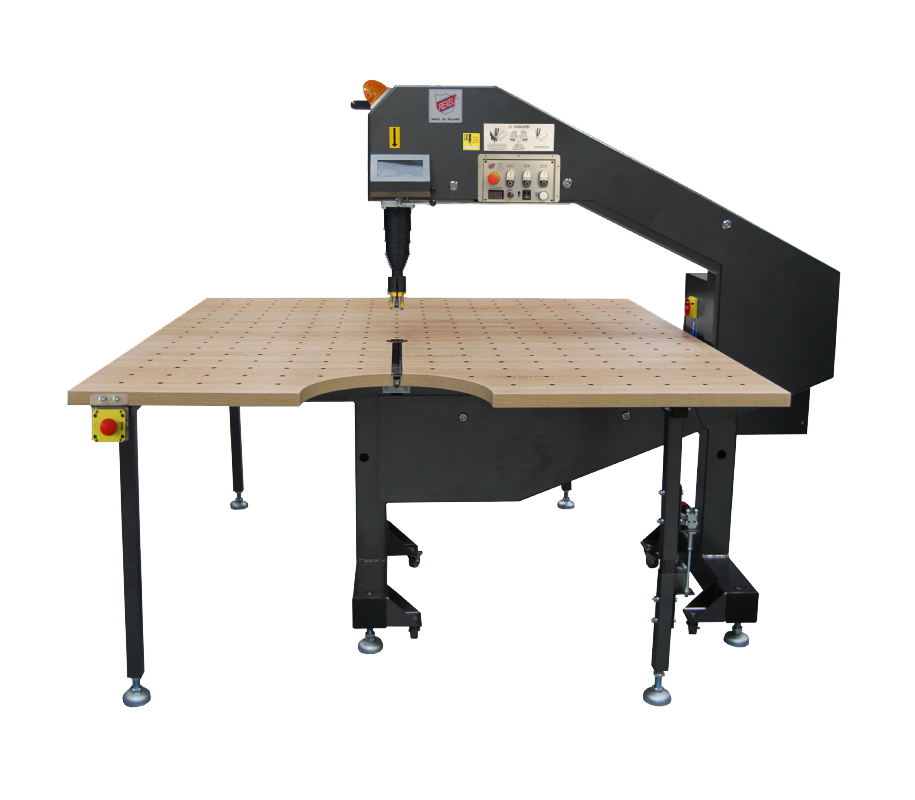

Rexel band knives are high-performance machines designed for precision cutting of cotton, knitted fabrics, synthetic materials, and upholstery foam in blocks.
They can be used as standalone cutting workstations or seamlessly integrated with the CUTMaster spreading table.
Main Features
- extensive model range for various applications
- movable table top and touch panel (selected models)
- optional air blowing table and variable speed control
- available upgrades: integrated vacuum system and manual side stop
- advanced emergency band knife braking system
Standard Equipment
Each machine comes equipped with a precision knife sharpener and a dust-collecting tray with a transparent safety shield.
The liftable telescopic blade guard allows for quick cutting height adjustment at the touch of a button, while integrated LED lighting ensures maximum visibility when navigating intricate patterns.
Available Options
All fixed table top models can be ordered with a smooth surface or an integrated air blowing system for easier material handling.
A high-efficiency vacuum system is available to keep the workspace clean, while an adjustable manual side stop with a precision scale ensures perfectly uniform cutting of stacked pieces.
Safety
Emergency braking stops the blade in less than a second if the E-STOP is activated, the band breaks, or any cover is opened. Omron safety switches prevent startup with open guards.
Mechanical and electrical interlocks ensure safe blade replacement. For maximum safety, the machine requires a manual reset after any emergency before resuming operation.
Models
Rexel band knives are available in the following models:
- R500 — compact model for small patterns
- R750 — versatile solution for medium-sized patterns
- R1000 — for large patterns up to 100 cm wide
- R1000/PB — with a sliding table top and side stop
- R1150 — for cutting upholstery foam in blocks
- R1150/PB — with a sliding table top and side stop
- R1250 — for very large patterns up to 125 cm wide
All models accept each type of band knife — straight, convex, concave or toothed.
Not sure which version is right for you?
Contact us to schedule a free online meeting and we will guide you through our offer.
Easy Operation
Cutting with Rexel band knife machines is effortless and intuitive. With air blowing system the material slides over the table, so you only need to guide it along the drawn lines.
Watch the video and see how easy it is.
Send samples of your materials for testing
Not sure if your materials will cut perfectly? Send us samples and receive a free video report with our expert analysis.
Maintenance & Support
Maintenance is limited to replacing blades, sharpening stones, and regular cleaning. The frequency of blades and stones replacement depends on the type of material and the number of plies cut at once.
Each cutting machine we sell comes with a complete support package. We offer full post-warranty service and fast access to spare parts, delivered quickly via courier.
We provide full support in three key areas:
service and spare parts
in-house warranty service
parts shipped within 24 hours
video tutorials
24/7 access to troubleshooting guides
online help
chat with our specialists when necessary
Frequently Asked Questions
What materials can RollMaster cut? Will it cut mine?
RollMaster can cut a wide range of materials including most woods, plastics, foams, fabrics, and soft metals like aluminum. If you’re unsure whether it can handle your specific material, feel free to contact us with details—chances are, it can!
How much does maintenance and service cost?
Maintenance and service costs can vary depending on usage and specific needs. We offer flexible support options to suit different requirements—please contact us for more details.
How long is the warranty?
We provide a standard 1-year warranty for all B2B customers.
Technical Specification
Smart Ocean
| Blade sizes | 5″ |
| Cutting capacity | 9 cm |
| Blades | Standard: Carbon Steel Optional: High Speed Steel, Wave Edge |
| Belts | Medium Grit |
| Weight | 9 kg |
| Motor power | 270 W |
| Voltage | 230 V |
Blue Ocean
| Blade sizes | 8″, 10″, 12″ |
| Cutting capacity | 16.5 cm, 21.5 cm, 26.5 cm |
| Blades | Standard: Carbon Steel Optional: High Speed Steel, Wave Edge |
| Belts | Standard: Medium Grit Optional: Fine, Coarse |
| Weight | 14.5 kg |
| Motor power | 550 W |
| Voltage | 230 V |
Silver Ocean
| Blade sizes | 8″, 10″ |
| Cutting capacity | 16.5 cm, 21.5 cm |
| Blades | Standard: Carbon Steel Optional: High Speed Steel, Wave Edge |
| Belts | Standard: Medium Grit Optional: Fine, Coarse |
| Weight | 15 kg |
| Motor power | 550 W |
| Voltage | 230 V |
Black Ocean
| Blade sizes | 8″, 10″, 12″ |
| Cutting capacity | 16.5 cm, 21.5 cm, 26.5 cm |
| Blades | Standard: Carbon Steel Optional: High Speed Steel, Wave Edge |
| Belts | Standard: Medium Grit Optional: Fine, Coarse |
| Weight | 16 kg |
| Motor power | 750 W |
| Voltage | 230 V |
Interested in this product?
Contact us to discuss your requirements and get a quote.
RollMaster Super cuts rolled materials precisely to the exact formats. Perfect for window blinds, curtains, upholstery and bedding producers who need fast, accurate cuts every time.
Built with a lightweight yet incredibly strong construction that lasts decades, not years.
The thick 25 mm, edge-sealed tabletop resists warping and damage from daily industrial use.
Main Features
- cuts automatically at 1 m/s
- 1 mm cutting precision
- handles rolls up to 320 cm wide
- expandable with LED backlight, speed adjustment and more
RollMaster Super cutting height is 5 mm.
For thicker materials, check out Super Plus model.
Thanks to the modular design, you can create a table tailored to your needs. Start with basic setup, add extensions later as your business grows.
Technical Specification
Cutting Table
| Cutting width | up to 320 cm |
| Length | 200 – 500 cm or other on request |
| Height | 86-89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
Cutting Device
| Cutting width | up to 320 cm |
| Length | 200 – 500 cm or other on request |
| Height | 86-89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
Control Features
| Cutting width | up to 320 cm |
| Length | 200 – 500 cm or other on request |
| Height | 86-89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
Other
| Cutting width | up to 320 cm |
| Length | 200 – 500 cm or other on request |
| Height | 86-89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
Simple Setup Process
Assemble RollMaster yourself and get started the same day. With our video tutorial, the installation process is as simple as joining lego bricks.
Moreover, the operator learns how to work with it in 30 minutes. No special training needed – just measure, set, and cut. Simple as that.
Watch the video and see how easy it is.
Send samples of your materials for testing
RollMaster Super cuts almost any kind of thin materials including cotton, linen, denim, silk, woven fabric, leather, polyester, films, technical textiles, synthetic fibres, filter materials and much more.
Not sure if your materials will cut perfectly?
Send us samples and receive a free video report with our expert analysis.
Maintenance & Support
Built to last decades, backed by support when you need it. Focus on production, we handle the rest.
assembly of the table
Step-by-step videos make assembly simple
service and spare parts
Fast response and spare parts shipped within 24 hours
video tutorials
24/7 access to troubleshooting guides
expanding the system
Frequently Asked Questions
What materials can RollMaster cut? Will it cut mine?
RollMaster can cut a wide range of materials including most woods, plastics, foams, fabrics, and soft metals like aluminum. If you’re unsure whether it can handle your specific material, feel free to contact us with details—chances are, it can!
How much does maintenance and service cost?
Maintenance and service costs can vary depending on usage and specific needs. We offer flexible support options to suit different requirements—please contact us for more details.
How long is the warranty?
We provide a standard 1-year warranty for all B2B customers.
Every RollMaster can be tailored to your needs
Choose size and features that match your production goals. Find your ideal setup in minutes.
