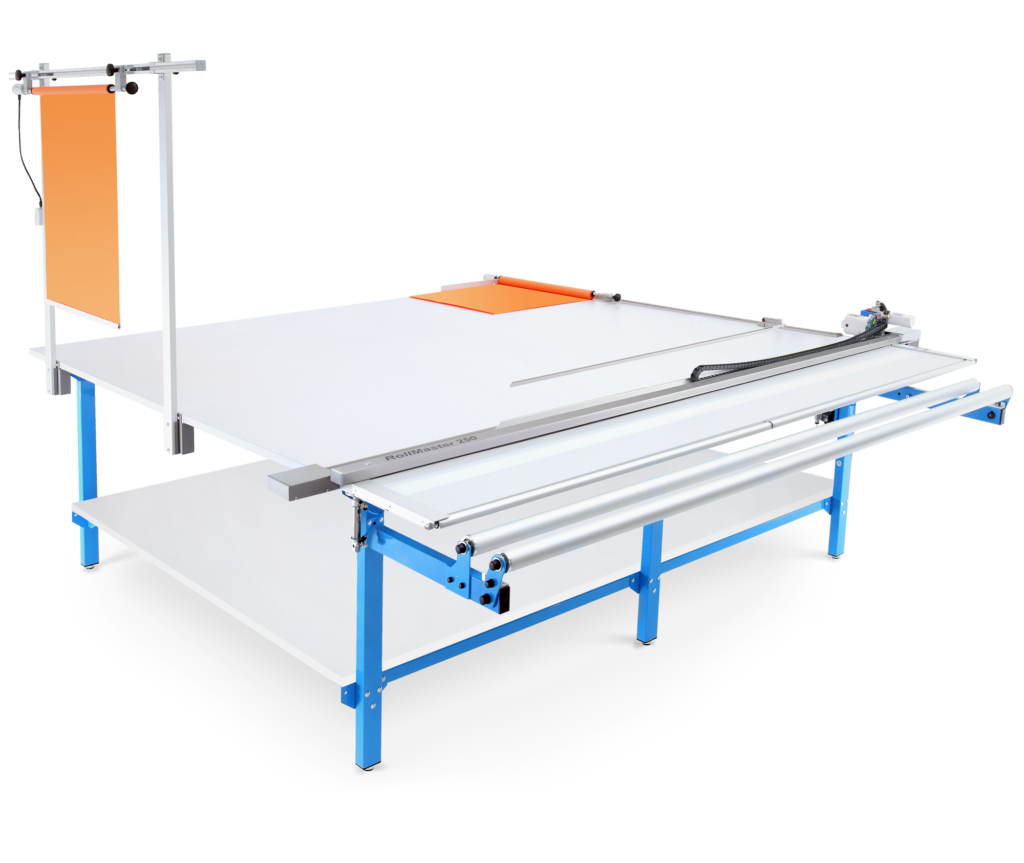

RollMaster Super is the most popular table in the RollMaster series, built for cutting fabrics from the roll into formats. It’s widely used in roller blind and curtain production.
It cuts both natural and synthetic fabrics — including woven, non-woven, and knitted materials.
Main Features
- 1 mm cutting precision
- high-speed automatic cutter (1 m/s cutting speed)
- cutting height up to 5 mm
- pneumatic holding bar with button and foot pedal control
- expandable with LED backlight, speed adjustment, and more
- supports rolls up to 320 cm wide
RollMaster Super features cutting height of up to 5 mm.
If you have thicker materials, see the Super Plus model.
Construction
Bolt-together powder-coated steel frame keeps the structure light yet exceptionally rigid. Aluminium components are anodised for corrosion resistance and surface hardness.

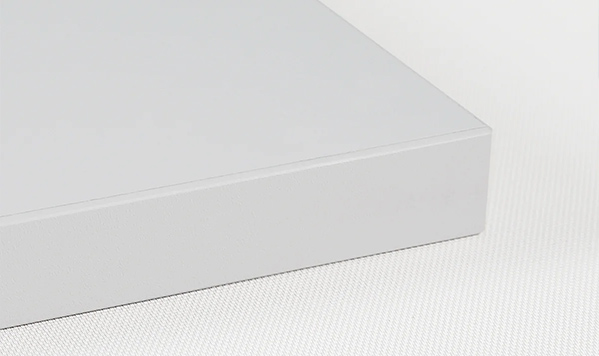

The hardened 25 mm table top uses 2 mm PVC edge protection instead of sharp aluminium edges.

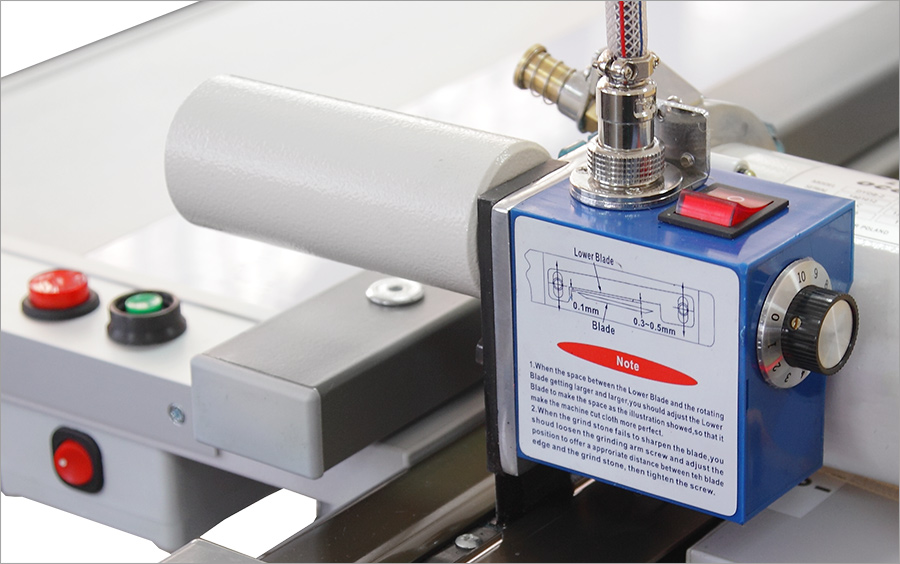

Cutter
RollMaster Super features an automatic cutter with 1 m/s cutting speed, optionally adjustable. The high-speed cutting head cuts materials up to 5 mm thick.
The control unit includes a cut counter with manual adjustment and reset, and lets the operator set the cutting width directly on the panel.
Blade covers, a start lock activated when the holding bar is raised, and an emergency switch keep the operator safe during operation.
Base Configuration
The pneumatic holding bar clamps the fabric firmly with a push of a button. A foot pedal — placeable anywhere — offers an alternative control point and frees both hands when straightening the fabric.
A precision scale strip runs along the table top serving as a reference edge for the fabric. It can be fitted with an angled sliding strip or a laser slider.
RollMaster comes in various sizes and multiple cutting configurations.
There is a model for every workshop, budget, and production volume.
RollMaster Models
RollMaster is available in five versions with different cutting heads:
- Standard — manual cutter
- Super — automatic cutter (5 mm cutting height)
- Super Plus — automatic cutter (25 mm cutting height)
- PRO — combines ultrasonic and rotary blade cutters
- Mini — for small formats, with different cutting heads
Not sure which model is right for you?
Contact us to schedule a free online meeting and we’ll walk you through the options.
Or use our Product Advisor to narrow down the selection.
The modular design lets you select features that actually suit your work.
Use RollMaster Super configurator to customise it.
Simple Setup & Easy Operation
Assemble the RollMaster yourself and get started the same day — the assembly manual and video tutorial walk you through every step of the installation process. No technical skills required.
Operating the table is easy to learn in one day. No special training needed — just measure, set, and cut.
Watch the video and see how easy it is.
Maintenance & Support
RollMaster Super requires no regular servicing — just cleaning and replacing blades, sharpeners, and carbon brushes. Video tutorials are available for all maintenance tasks, and all consumables can be ordered in a spare parts kit.
Each RollMaster includes a complete support package. We offer full post-warranty service and spare parts shipped by courier within 24 hours.
We provide full support in four key areas:
assembly of the table
step-by-step manual for simple assembly
service and spare parts
fast response and spare parts shipped within 24 hours
video tutorials
24/7 access to troubleshooting guides
online help
chat with our specialists when necessary
Send samples of your materials for testing
RollMaster Super cuts almost any kind of thin materials including cotton, linen, denim, jersey, silk, woven fabric, leather,
polyester, vinyl, films, technical textiles, protective fabrics, synthetic fibres, filter materials, and much more.
Not sure if your materials will cut perfectly? Send us samples and receive a free video report with our expert analysis.
Applications
RollMaster Super is used in various industries: roller blinds manufacturing, automotive & aerospace, furniture & home decor, construction, biotechnology, industrial services and others.
From roller blinds and canvas to PVC, films, pre-preg composites and gore-tex – it gives 1 mm precision cuts for every material type.
What materials can RollMaster cut? Will it cut mine?
RollMaster can cut a wide range of materials including most woods, plastics, foams, fabrics, and soft metals like aluminum. If you’re unsure whether it can handle your specific material, feel free to contact us with details—chances are, it can!
How much does maintenance and service cost?
Maintenance and service costs can vary depending on usage and specific needs. We offer flexible support options to suit different requirements—please contact us for more details.
How long is the warranty?
We provide a standard 1-year warranty for all B2B customers.
Technical Specification
Cutting Table
| Cutting width | up to 320 cm |
| Length | 200–500 cm or other on request |
| Height | 86–89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
| Bottom shelves | 18 mm, optional |
Cutting Device
| Operation | automatic |
| Cutting height | 5 mm |
| Cutting speed | 1 m/s, optionally adjustable |
| Cutting precision | 1 mm |
| Protection equipment | blade covers, start lock activated when the holding bar is raised, emergency switch |
| Blade speed | 12,000 rpm, optionally adjustable |
| Power | 200 W |
| Voltage | 230 V |
Control Features
| Control panel | 4-digit display, buttons |
| Control buttons | 2 sets |
| Layer counter | yes, with editing function |

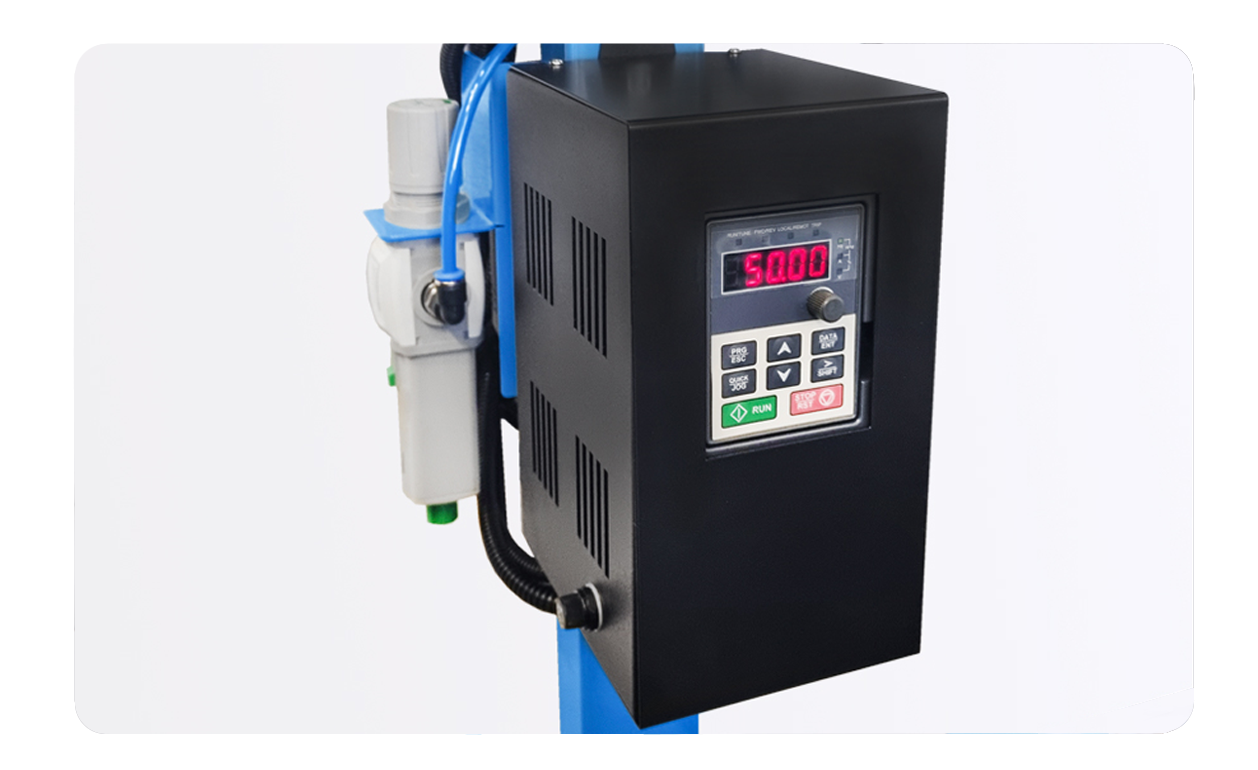

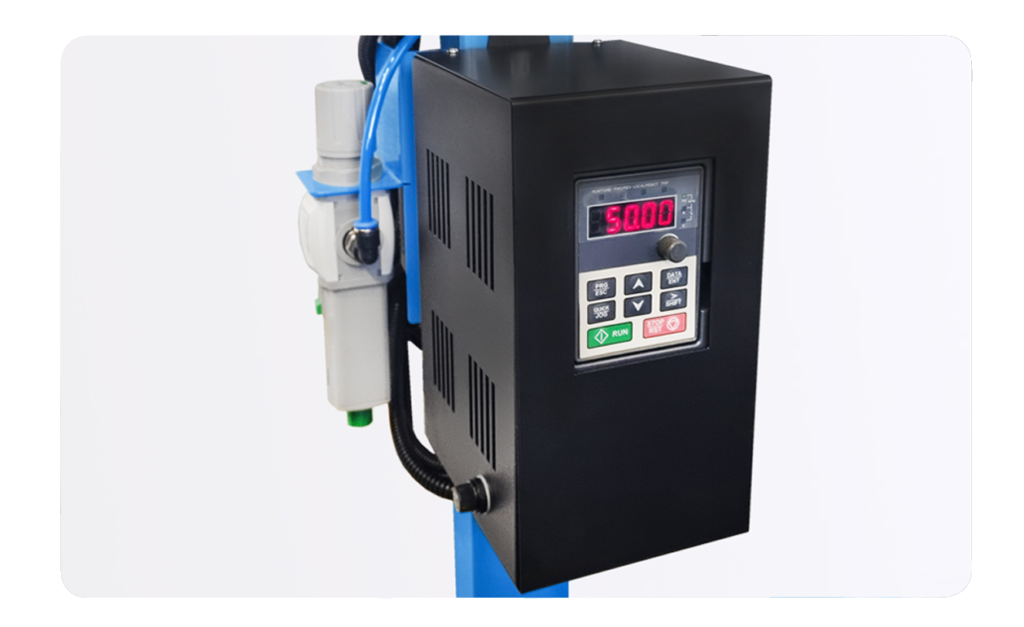

| Blade speed adjustment | optional |
| Cutting speed adjustment | optional |
Other
| Holding bar | pneumatic, single |
| Fabric feeder | built-in or external |
RollMaster Super can be
customised to your needs
Choose dimensions and features that match your production type.
Find your ideal setup in minutes.
RollMaster Super cuts rolled materials precisely to the exact formats. Perfect for window blinds, curtains, upholstery and bedding producers who need fast, accurate cuts every time.
Built with a lightweight yet incredibly strong construction that lasts decades, not years.
The thick 25 mm, edge-sealed tabletop resists warping and damage from daily industrial use.
Main Features
- cuts automatically at 1 m/s
- 1 mm cutting precision
- handles rolls up to 320 cm wide
- expandable with LED backlight, speed adjustment and more
RollMaster Super cutting height is 5 mm.
For thicker materials, check out Super Plus model.
Thanks to the modular design, you can create a table tailored to your needs. Start with basic setup, add extensions later as your business grows.
Technical Specification
Cutting Table
| Cutting width | up to 320 cm |
| Length | 200 – 500 cm or other on request |
| Height | 86-89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
Cutting Device
| Cutting width | up to 320 cm |
| Length | 200 – 500 cm or other on request |
| Height | 86-89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
Control Features
| Cutting width | up to 320 cm |
| Length | 200 – 500 cm or other on request |
| Height | 86-89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
Other
| Cutting width | up to 320 cm |
| Length | 200 – 500 cm or other on request |
| Height | 86-89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
Simple Setup Process
Assemble RollMaster yourself and get started the same day. With our video tutorial, the installation process is as simple as joining lego bricks.
Moreover, the operator learns how to work with it in 30 minutes. No special training needed – just measure, set, and cut. Simple as that.
Watch the video and see how easy it is.
Send samples of your materials for testing
RollMaster Super cuts almost any kind of thin materials including cotton, linen, denim, silk, woven fabric, leather, polyester, films, technical textiles, synthetic fibres, filter materials and much more.
Not sure if your materials will cut perfectly?
Send us samples and receive a free video report with our expert analysis.
Maintenance & Support
Built to last decades, backed by support when you need it. Focus on production, we handle the rest.
assembly of the table
Step-by-step videos make assembly simple
service and spare parts
Fast response and spare parts shipped within 24 hours
video tutorials
24/7 access to troubleshooting guides
expanding the system
Frequently Asked Questions
What materials can RollMaster cut? Will it cut mine?
RollMaster can cut a wide range of materials including most woods, plastics, foams, fabrics, and soft metals like aluminum. If you’re unsure whether it can handle your specific material, feel free to contact us with details—chances are, it can!
How much does maintenance and service cost?
Maintenance and service costs can vary depending on usage and specific needs. We offer flexible support options to suit different requirements—please contact us for more details.
How long is the warranty?
We provide a standard 1-year warranty for all B2B customers.
Every RollMaster can be tailored to your needs
Choose size and features that match your production goals. Find your ideal setup in minutes.
