WindMaster combines rewinding, measuring, and cutting in one compact unit. Fabric is manually rewound from a basket on one side onto the tube placed on rollers on the opposite side.
WindMaster Standard is the entry-level model with manual cutting and manual winding.
Main Features
- 1 mm rewinding precision
- digital counter
- manual end cutter
- manual holding bar
- supports rolls up to 200 cm wide
WindMaster Standard features a manual cutter.
For automatic cutting, see the Super model.
Construction

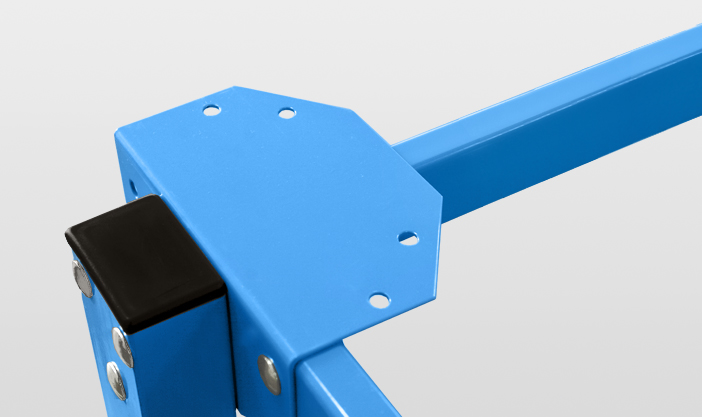

Bolt-together powder-coated steel frame keeps the structure light yet exceptionally rigid. Aluminium components are anodised for corrosion resistance and surface hardness.
The hardened 25 mm table top uses 2 mm PVC edge protection instead of sharp aluminium edges.
Measuring & Rewinding

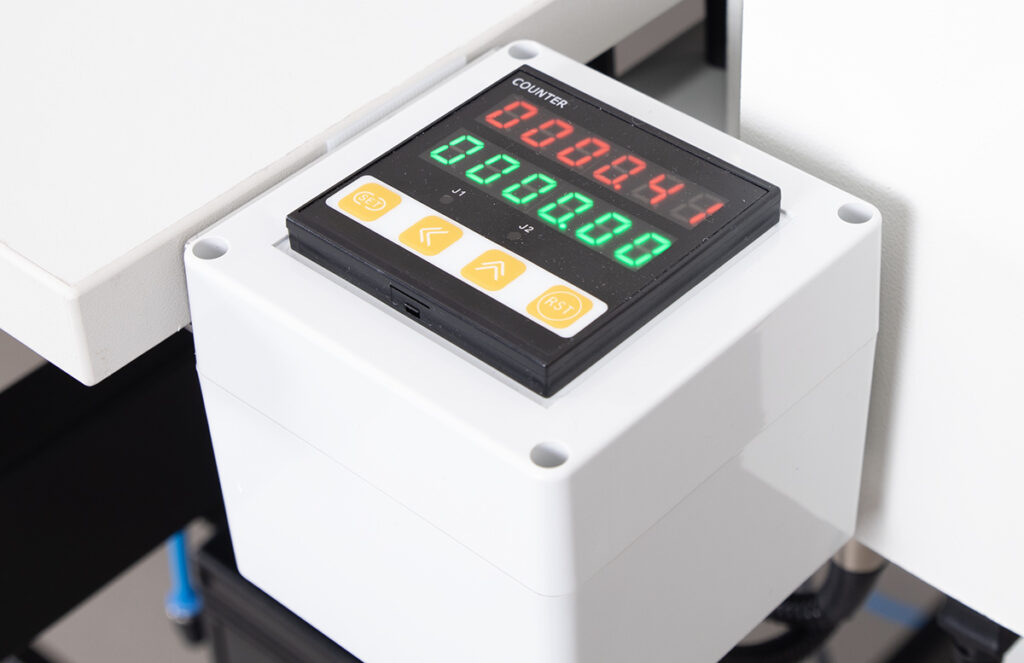

The high-precision digital counter measures and displays the rewound length with 1 mm accuracy.
Fabric unwinds from a basket on one side and is manually wound onto the tube on the opposite side.
Cutting

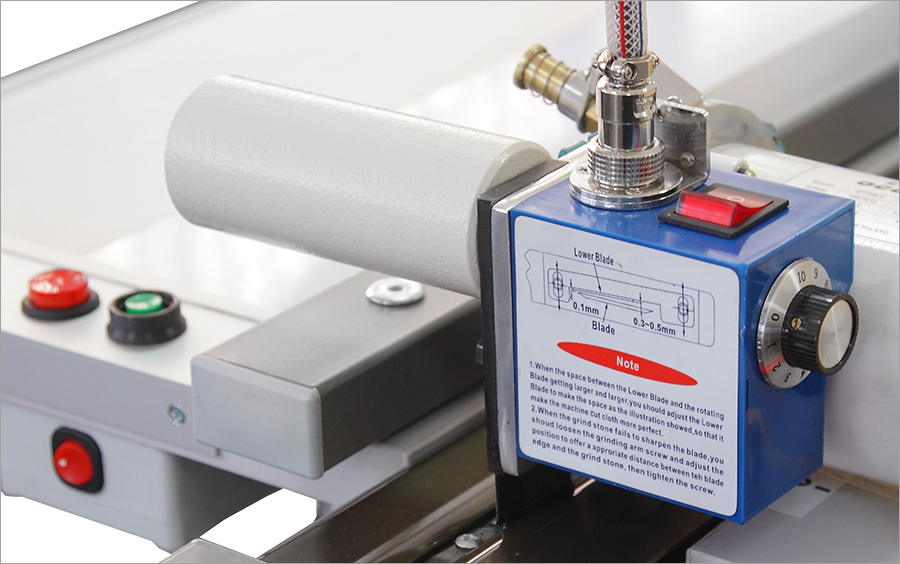

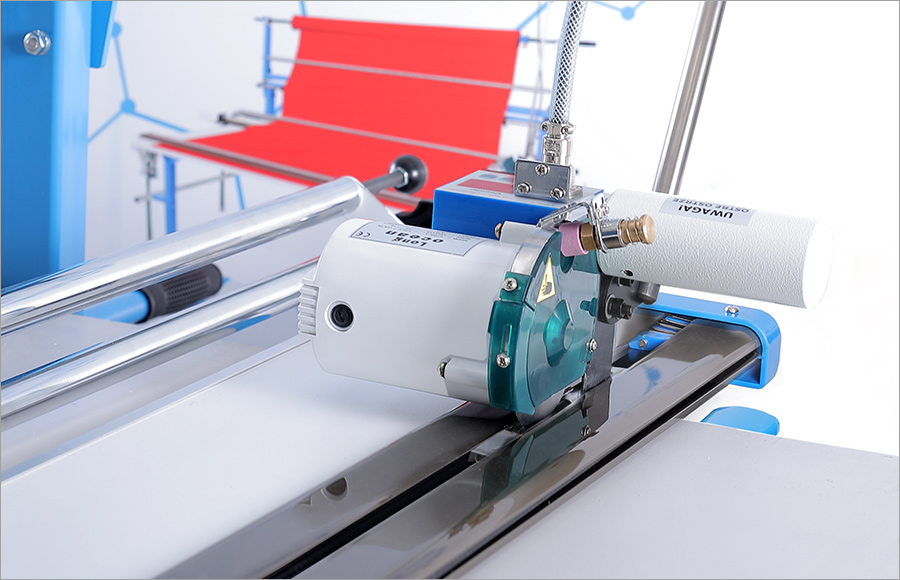

WindMaster Standard uses a manually operated high-speed cutter, which handles fabrics up to 5 mm thick. The cutter is moved along the fabric using the long handle, then pulled back to the home position.
An integrated cut counter includes adjustment and reset functions. Blade covers keep the operator safe during operation.
WindMaster Standard uses a manual end cutter and rewinds manually.
Choose this version for occasional rewinding.
Not sure which model is right for you?
Contact us to schedule a free online meeting and we’ll walk you through the options.
Or use our Product Advisor to narrow down the selection.

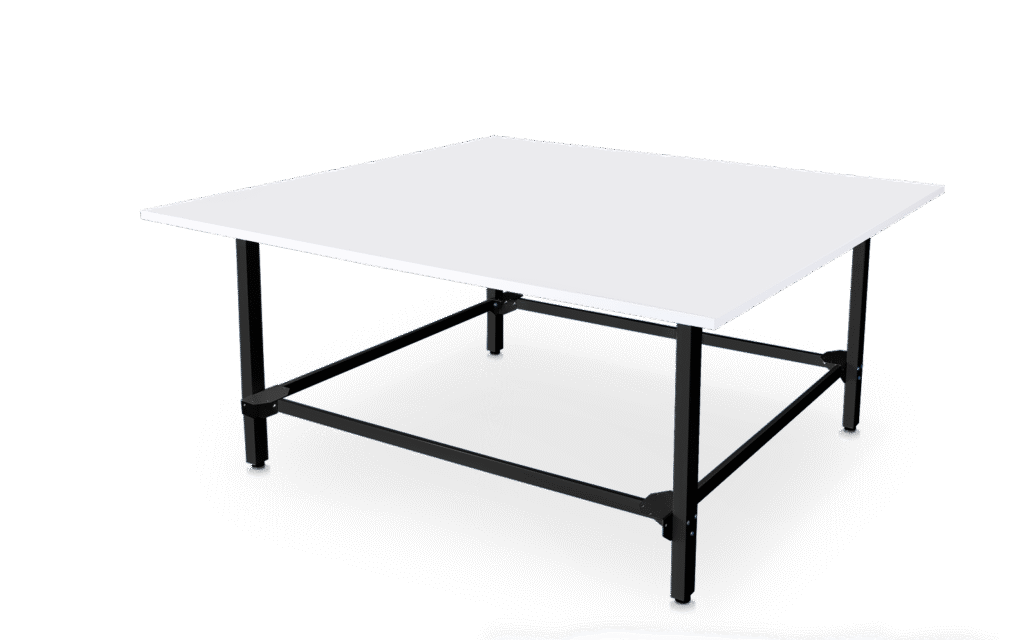

Configuration Options

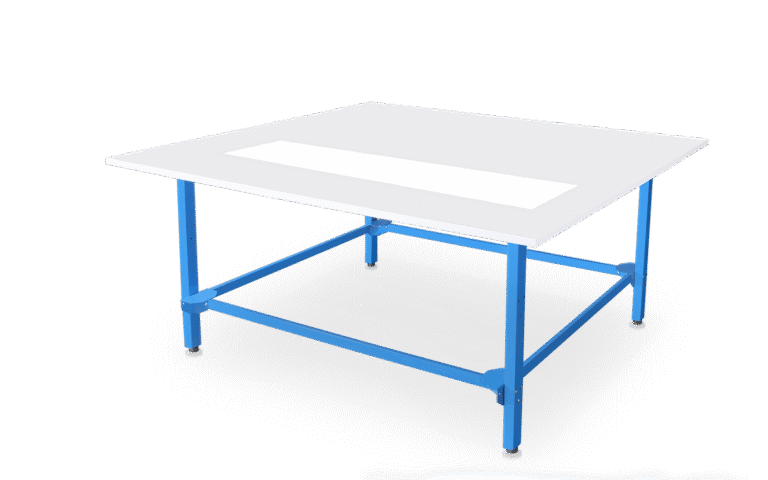

The modular design lets you create a table tailored to your needs.
Use WindMaster Standard configurator to customise it.
Simple Setup & Easy Operation

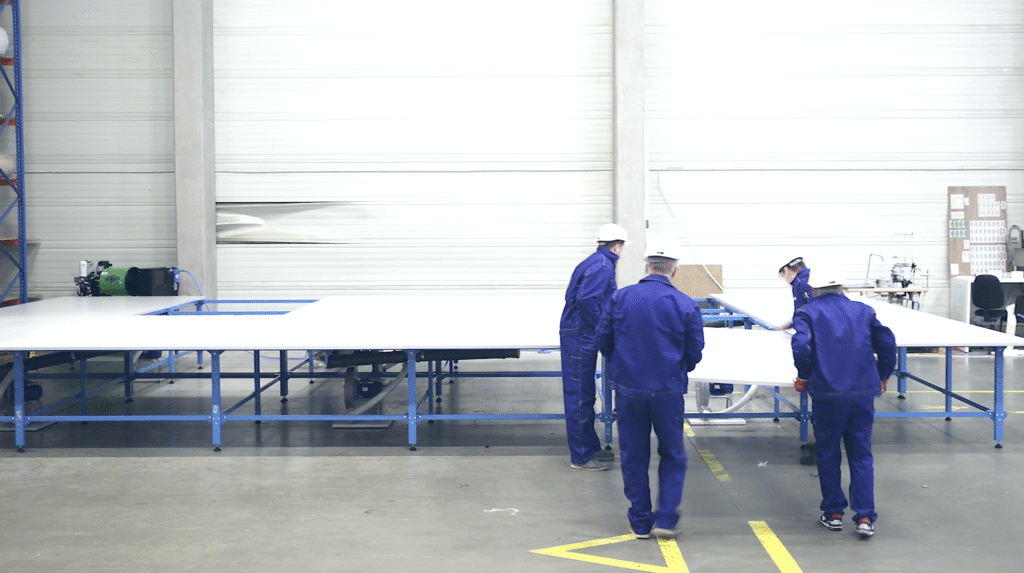

Assemble the WindMaster yourself and get started the same day— the assembly manual and video tutorial walk you through every step of the installation process. No technical skills required.
Operating the table is easy to learn in one day. No special training needed — just unroll, measure, and cut.
Maintenance & Support
WindMaster Standard requires no regular servicing — just cleaning and replacing blades, sharpeners, and carbon brushes. Video tutorials are available for all maintenance tasks, and all consumables can be ordered in a spare parts kit.
Each WindMaster includes complete support package. We offer full post-warranty service and spare parts shipped by courier within 24 hours.
We provide full support in four key areas:
assembly of the table
step-by-step manual for simple assembly
service and spare parts
fast response and spare parts shipped within 24 hours
video tutorials
24/7 access to troubleshooting guides
online help
chat with our specialists when necessary
Send samples of your materials for testing
WindMaster Standard cuts almost any kind of thin materials including cotton, linen, denim, jersey, silk, woven fabric, leather,
polyester, vinyl, films, technical textiles, protective fabrics, synthetic fibres, filter materials and much more.
Not sure if your materials will cut perfectly? Send us samples and receive a free video report with our expert analysis.
Applications
WindMaster Standard works for fabric wholesalers, curtain manufacturers, material pre-processing operators, and any application requiring precise rewinding.
From canvas to felt, vinyl or paper – it gives 1 mm rewinding precision for every material type.
Frequently Asked Questions
What materials can RollMaster cut? Will it cut mine?
RollMaster can cut a wide range of materials including most woods, plastics, foams, fabrics, and soft metals like aluminum. If you’re unsure whether it can handle your specific material, feel free to contact us with details—chances are, it can!
How much does maintenance and service cost?
Maintenance and service costs can vary depending on usage and specific needs. We offer flexible support options to suit different requirements—please contact us for more details.
How long is the warranty?
We provide a standard 1-year warranty for all B2B customers.
Technical Specification
Cutting Table
| Cutting width | up to 200 cm |
| Length | 200 cm or other on request |
| Height | 86–89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |

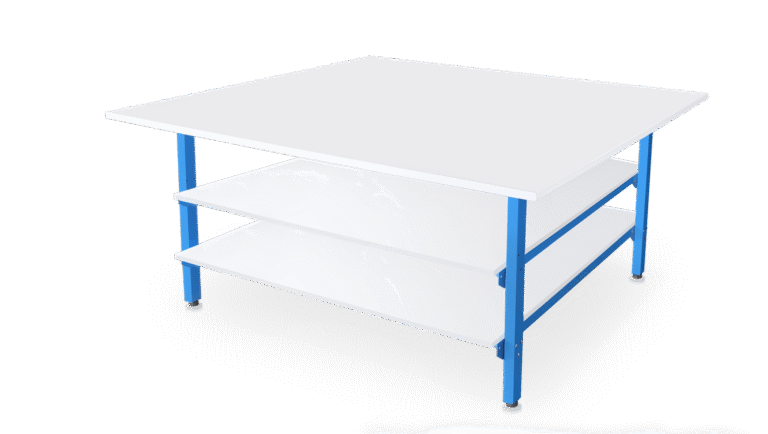

| Bottom shelves | 18 mm, optional |
Cutting Device
| Operation | manual |
| Cutting height | 5 mm |
| Cutting precision | 1 mm |
| Protection equipment | blade covers |
| Blade speed | 12,000 rpm |
| Power | 130 W |
| Voltage | 230 V |
Control Features
| Control buttons | manual switch in the cutter hand, table button and foot pedal for holding bar control |
| Layer counter | yes, with editing function |
| Blade speed adjustment | optional |
Other
| Holding bar | pneumatic, single |
| Fabric feeder | built-in or external |
WindMaster Standard can be
customised to your needs
Choose dimensions and features that match your production goals.
Configure your own setup with our online tool.

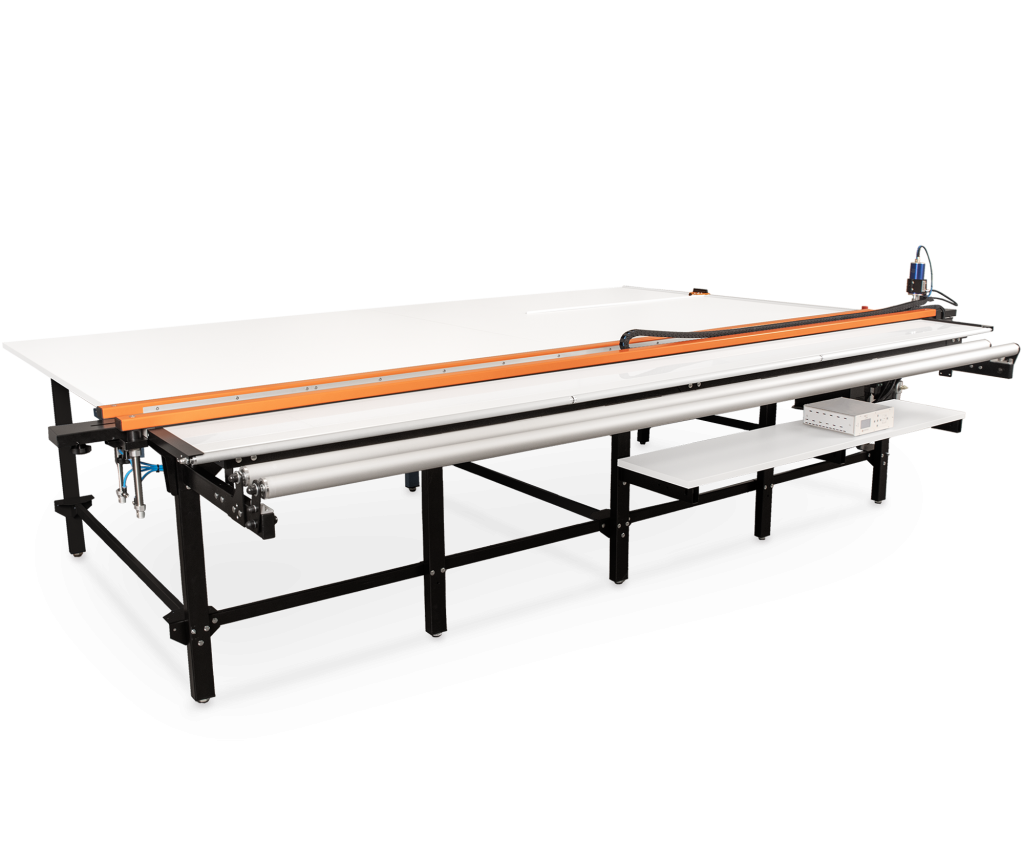

RollMaster Super cuts rolled materials precisely to the exact formats. Perfect for window blinds, curtains, upholstery and bedding producers who need fast, accurate cuts every time.
Built with a lightweight yet incredibly strong construction that lasts decades, not years.
The thick 25 mm, edge-sealed tabletop resists warping and damage from daily industrial use.
Main Features
- cuts automatically at 1 m/s
- 1 mm cutting precision
- handles rolls up to 320 cm wide
- expandable with LED backlight, speed adjustment and more
RollMaster Super cutting height is 5 mm.
For thicker materials, check out Super Plus model.
Thanks to the modular design, you can create a table tailored to your needs. Start with basic setup, add extensions later as your business grows.
Technical Specification
Cutting Table
| Cutting width | up to 320 cm |
| Length | 200 – 500 cm or other on request |
| Height | 86-89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
Cutting Device
| Cutting width | up to 320 cm |
| Length | 200 – 500 cm or other on request |
| Height | 86-89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
Control Features
| Cutting width | up to 320 cm |
| Length | 200 – 500 cm or other on request |
| Height | 86-89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
Other
| Cutting width | up to 320 cm |
| Length | 200 – 500 cm or other on request |
| Height | 86-89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
Simple Setup Process
Assemble RollMaster yourself and get started the same day. With our video tutorial, the installation process is as simple as joining lego bricks.
Moreover, the operator learns how to work with it in 30 minutes. No special training needed – just measure, set, and cut. Simple as that.
Watch the video and see how easy it is.
Send samples of your materials for testing
RollMaster Super cuts almost any kind of thin materials including cotton, linen, denim, silk, woven fabric, leather, polyester, films, technical textiles, synthetic fibres, filter materials and much more.
Not sure if your materials will cut perfectly?
Send us samples and receive a free video report with our expert analysis.
Maintenance & Support
Built to last decades, backed by support when you need it. Focus on production, we handle the rest.
assembly of the table
Step-by-step videos make assembly simple
service and spare parts
Fast response and spare parts shipped within 24 hours
video tutorials
24/7 access to troubleshooting guides
expanding the system
Frequently Asked Questions
What materials can RollMaster cut? Will it cut mine?
RollMaster can cut a wide range of materials including most woods, plastics, foams, fabrics, and soft metals like aluminum. If you’re unsure whether it can handle your specific material, feel free to contact us with details—chances are, it can!
How much does maintenance and service cost?
Maintenance and service costs can vary depending on usage and specific needs. We offer flexible support options to suit different requirements—please contact us for more details.
How long is the warranty?
We provide a standard 1-year warranty for all B2B customers.
