RollMaster PRO is the most advanced model in the RollMaster series, combining an ultrasonic knife with a rotary blade cutter.
The ultrasonic knife both cuts and welds the fabric, producing a sealed edge that does not fray.
Main Features
- 1 mm cutting precision
- ultrasonic and blade cutter, interchangeable
- touch panel with configurable speed, width, and presets
- double pneumatic holding bar
- LED backlight
- supports rolls up to 340 cm wide
Construction
Bolt-together powder-coated steel frame keeps the structure light yet exceptionally rigid. Aluminium components are anodised for corrosion resistance and surface hardness.
The hardened 25 mm table top uses 2 mm PVC edge protection instead of sharp aluminium edges.
Touch Panel
The 7″ touch panel gives full control over the cutting process: cutting speed, blade rotation speed, cutting width, and head switching, with 6 presets for quick settings change and a cut counter for production tracking.
LED backlight, language selection, statistics, and ultrasonic generator data are also accessible from the panel.
Cutting Heads
RollMaster PRO comes with two interchangeable cutting heads.
The ultrasonic head welds synthetic fabrics as it cuts, producing sealed edges — ideal for roller blinds. The rotary blade handles materials that ultrasonic knife cannot cut, such as natural fabrics.
Switching between heads takes under a minute.
Improved Features
RollMaster PRO uses an encoder-based cutting head drive for better movement precision than RollMaster Super.
The double pneumatic holding bar applies stronger pressure to the material.
Before each cut, the system automatically checks whether the cutting head is in the home position.
Base Configuration
RollMaster PRO comes fully equipped as standard.
The base configuration includes a fabric feeder, pneumatic holding bar with foot pedal, measuring angle strip with adjustable angle, LED backlight, and both cutting heads.
The only available options are bottom shelves and a spare parts kit.
Why is ultrasonic technology so good for blinds?
An ultrasonic cutter uses high-frequency vibrations to generate heat at the point of contact with the material. The heat cuts and welds the fabric simultaneously, sealing the edges as it goes, giving the roller blind’s edges high resistance to damage.
This works best with synthetic fabrics containing thermoplastics — and polyester, the primary material in roller blind production, is widely considered ideal for ultrasonic processing.
RollMaster Models
RollMaster is available in five versions with different cutting heads:
- Standard — manual cutter
- Super — automatic cutter (5 mm cutting height)
- Super Plus — automatic cutter (25 mm cutting height)
- PRO — combines ultrasonic and rotary blade cutters

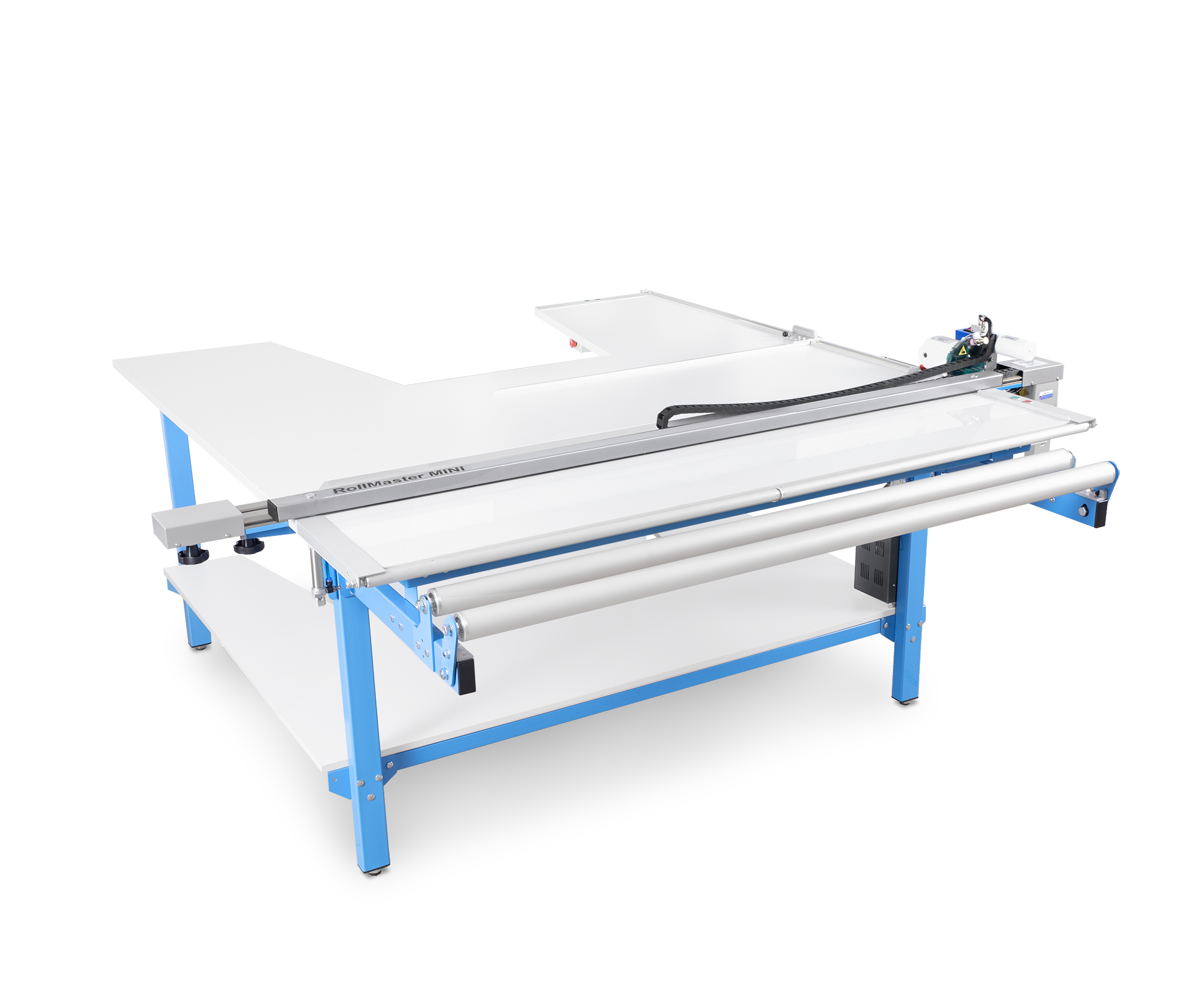

- Mini — for small formats, with different cutting heads
Not sure which model is right for you?
Contact us to schedule a free online meeting and we’ll guide you through the options.
Or use our Product Advisor to narrow down the selection.
Configuration Options
The modular design lets you create a table tailored to your needs.
Use RollMaster PRO configurator to customise it.
Simple Setup & Easy Operation
Assemble the RollMaster yourself and get started the same day — the assembly manual and video tutorial walk you through every step of the installation process. No technical skills required.
Operating the table is easy to learn in one day. No special training needed — just measure, set, and cut.
Watch the video and see how easy it is.
Maintenance & Support
RollMaster PRO requires no regular servicing — just cleaning and replacing blades, sharpeners, and carbon brushes. Video tutorials are available for all maintenance tasks, and all consumables can be ordered in a spare parts kit.
Each RollMaster includes a complete support package. We offer full post-warranty service and spare parts shipped by courier within 24 hours.
We provide full support in four key areas:
assembly
step-by-step manual for simple assembly
service and spare parts
fast response and spare parts shipped within 24 hours
video tutorials
24/7 access to troubleshooting guides
online help
chat with our specialists when necessary
Send samples of your materials for testing
RollMaster PRO cuts almost any kind of materials including synthetic fibres, polyester, vinyl, films, membranes, rubber, foil, PVC, foams, filters, upholstery, leather, cotton, jersey, silk, technical fabrics, and much more.
Not sure if your materials will cut perfectly? Send us samples and receive a free video report with our expert analysis.
Applications
RollMaster PRO is used in various industries: roller blinds & awnings manufacturing, awnings, automotive, interior decoration, industrial production, healthcare, and others.
From roller blinds and canvas to PVC, films, pre-preg composites and gore-tex – it gives 1 mm precision cuts and perfectly sealed edges.
Frequently Asked Questions
What materials can RollMaster cut? Will it cut mine?
RollMaster can cut a wide range of materials including most woods, plastics, foams, fabrics, and soft metals like aluminum. If you’re unsure whether it can handle your specific material, feel free to contact us with details—chances are, it can!
How much does maintenance and service cost?
Maintenance and service costs can vary depending on usage and specific needs. We offer flexible support options to suit different requirements—please contact us for more details.
How long is the warranty?
We provide a standard 1-year warranty for all B2B customers.
Technical Specification
Cutting Table
| Cutting width | up to 340 cm |
| Length | 200–500 cm or other on request |
| Height | 86–89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
| Bottom shelves | 18 mm, optional |
Cutting Device
| Ultrasonic | Rotary blade | |
| Operation | automatic | automatic |
| Cutting precision | 1 mm | 1 mm |
| Cutting height | 1 mm | 8 mm |
| Cutting speed | 0.8 m/s, adjustable | 0.8 m/s, adjustable |
| Blade speed | – | 2,400 rpm, adjustable |
| Protection equipment | start lock when the holding bar is raised, checking if cutting head is in home position, emergency switch | blade covers, start lock when the holding bar is raised, checking if cutting head is in home position, emergency switch |
| Power | 1200 W | 150 W |
| Voltage | 230 V | 230 V |
Control Features
| Control panel | 7″ touch panel |
| Control buttons | 2 sets |
| Layer counter | yes, with editing function |
| Cutting width setting | yes |
| Cutting speed adjustment | yes, with adjustable slow-start function |
| Blade speed adjustment | yes |
| Home position adjustment | yes |
| Presets | 6 |
| Statistics | yes |
| Ultrasonic settings | available through touch panel |
| Languages | English, German, French, Spanish, Italian + one on request |
Other
| Holding bar | double |
| Fabric feeder | built-in |
| Measuring device | regulated angle strip |
| LED backlight | yes |
RollMaster PRO can be
customised to your needs
Choose dimensions and features that match your production type.
Find your ideal setup in minutes.
RollMaster Super cuts rolled materials precisely to the exact formats. Perfect for window blinds, curtains, upholstery and bedding producers who need fast, accurate cuts every time.
Built with a lightweight yet incredibly strong construction that lasts decades, not years.
The thick 25 mm, edge-sealed tabletop resists warping and damage from daily industrial use.
Main Features
- cuts automatically at 1 m/s
- 1 mm cutting precision
- handles rolls up to 320 cm wide
- expandable with LED backlight, speed adjustment and more
RollMaster Super cutting height is 5 mm.
For thicker materials, check out Super Plus model.
Thanks to the modular design, you can create a table tailored to your needs. Start with basic setup, add extensions later as your business grows.
Technical Specification
Cutting Table
| Cutting width | up to 320 cm |
| Length | 200 – 500 cm or other on request |
| Height | 86-89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
Cutting Device
| Cutting width | up to 320 cm |
| Length | 200 – 500 cm or other on request |
| Height | 86-89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
Control Features
| Cutting width | up to 320 cm |
| Length | 200 – 500 cm or other on request |
| Height | 86-89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
Other
| Cutting width | up to 320 cm |
| Length | 200 – 500 cm or other on request |
| Height | 86-89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
Simple Setup Process
Assemble RollMaster yourself and get started the same day. With our video tutorial, the installation process is as simple as joining lego bricks.
Moreover, the operator learns how to work with it in 30 minutes. No special training needed – just measure, set, and cut. Simple as that.
Watch the video and see how easy it is.
Send samples of your materials for testing
RollMaster Super cuts almost any kind of thin materials including cotton, linen, denim, silk, woven fabric, leather, polyester, films, technical textiles, synthetic fibres, filter materials and much more.
Not sure if your materials will cut perfectly?
Send us samples and receive a free video report with our expert analysis.
Maintenance & Support
Built to last decades, backed by support when you need it. Focus on production, we handle the rest.
assembly of the table
Step-by-step videos make assembly simple
service and spare parts
Fast response and spare parts shipped within 24 hours
video tutorials
24/7 access to troubleshooting guides
expanding the system
Frequently Asked Questions
What materials can RollMaster cut? Will it cut mine?
RollMaster can cut a wide range of materials including most woods, plastics, foams, fabrics, and soft metals like aluminum. If you’re unsure whether it can handle your specific material, feel free to contact us with details—chances are, it can!
How much does maintenance and service cost?
Maintenance and service costs can vary depending on usage and specific needs. We offer flexible support options to suit different requirements—please contact us for more details.
How long is the warranty?
We provide a standard 1-year warranty for all B2B customers.
Every RollMaster can be tailored to your needs
Choose size and features that match your production goals. Find your ideal setup in minutes.
