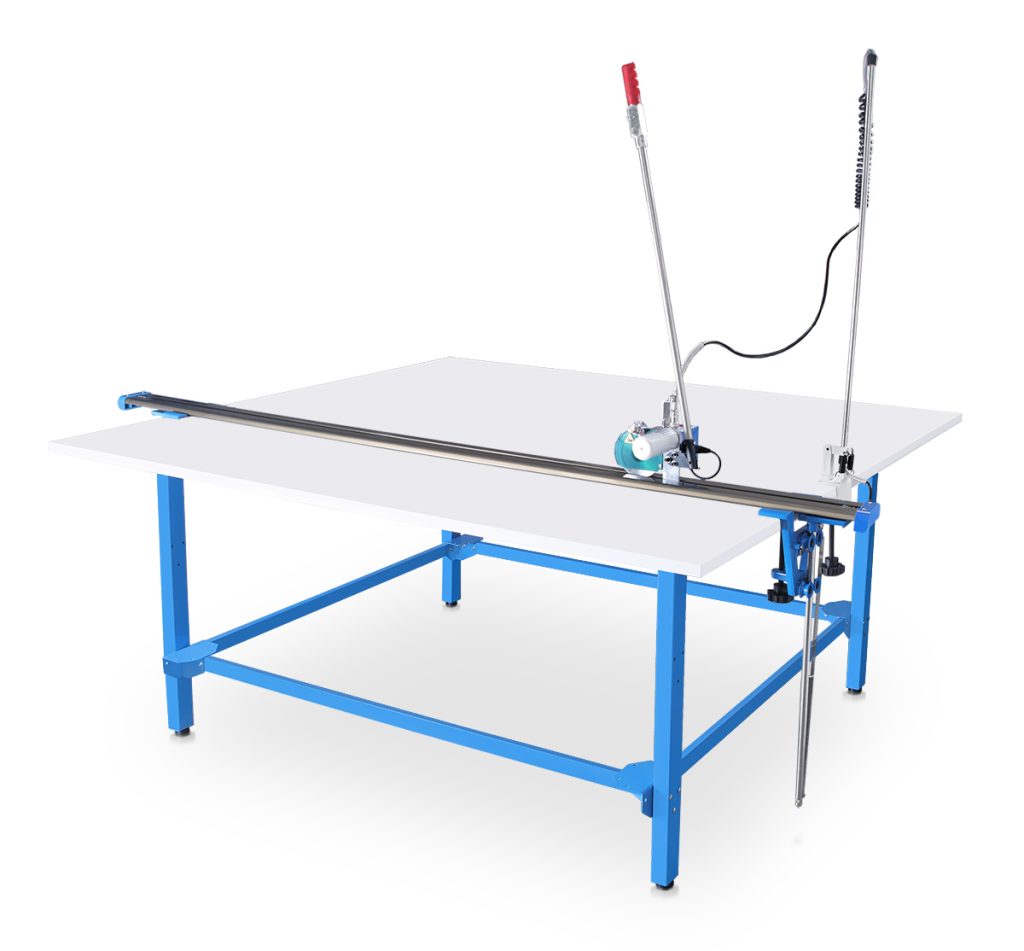

Long Ocean DYDB-1 end cutter enables quick cutting of single layers of fabric.
The machine head is manually moved along a track rail mounted on the table top, using either a short or a long handle.
Main Features
- handles fabric layers up to 5 mm thick
- cuts most fabrics thanks to a high-speed motor
- works with tables up to 280 cm wide
- available with a short or long cutter handle
Long Ocean DYDB-1 is a manual end cutter version.
If you prefer automatic cutting, check out the DYDB-2 model.
Functions
The heart of the machine is a cutting head driven by a 12,000 rpm high-speed motor.
Equipped with a 108 mm circular blade, it cuts the vast majority of thin fabrics, including harder materials.
The built-in layer counter displays the current number of cuts and can be adjusted if needed.
End cutter works best when paired with a right equipment.
Check out the Ocean cutting table and choose from our ready-made solutions.
Simple Setup & Easy Operation
Ocean end cutters are easy to install by yourself. The assembly manual and video tutorials are provided and no technical skills are required.
Operating is easy to learn in less than an hour — just unroll, cut, and repeat.
Watch the video and see how easy it is.
Maintenance & Support
The maintenance involves cleaning, replacing blades, sharpeners and carbon brushes. All parts available in stock.
Each end cutter includes full post-warranty service and fast spare parts delivery via courier.
We provide full support in four key areas:
assembly
step-by-step manual for simple assembly
service and spare parts
fast response and spare parts shipped within 24 hours
video tutorials
24/7 access to troubleshooting guides
online help
chat with our specialists when necessary
Send samples of your materials for testing
Long Ocean DYDB-1 cuts almost any kind of thin materials including cotton, linen, denim, jersey, silk, woven fabric, leather,
polyester, vinyl, films, technical textiles, protective fabrics, synthetic fibres, filter materials and much more.
Not sure if your materials will cut perfectly? Send us samples and receive a free video report with our expert analysis.
Applications
WindMaster Standard works for fabric wholesalers, curtain manufacturers, material pre-processing operators, and any application requiring precise rewinding.
From canvas to felt, vinyl or paper – it gives 1 mm rewinding precision for every material type.
Frequently Asked Questions
What materials can RollMaster cut? Will it cut mine?
RollMaster can cut a wide range of materials including most woods, plastics, foams, fabrics, and soft metals like aluminum. If you’re unsure whether it can handle your specific material, feel free to contact us with details—chances are, it can!
How much does maintenance and service cost?
Maintenance and service costs can vary depending on usage and specific needs. We offer flexible support options to suit different requirements—please contact us for more details.
How long is the warranty?
We provide a standard 1-year warranty for all B2B customers.
Technical Specification
Cutting Table
| Cutting width | up to 270 cm |
| Length | 200–500 cm or other on request |
| Height | 86–89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
| Bottom shelves | 18 mm, optional |
Cutting Device
| Operation | manual |
| Cutting height | 5 mm |
| Cutting precision | 1 mm |
| Protection equipment | blade covers, start lock when the holding bar is raised |
| Blade speed | 12000 rpm |
| Power | 130 W |
| Voltage | 230 V |
Control Features
| Control buttons | manual switch in the cutter hand, table button and foot pedal for holding bar operation |
| Layer counter | yes, with editing function |
| Blade speed adjustment | optional |
Other
| Holding bar | pneumatic, single |
| Fabric feeder | built-in or external |
Interested in this product?
Contact us to discuss your requirements and get a quote.
RollMaster Super cuts rolled materials precisely to the exact formats. Perfect for window blinds, curtains, upholstery and bedding producers who need fast, accurate cuts every time.
Built with a lightweight yet incredibly strong construction that lasts decades, not years.
The thick 25 mm, edge-sealed tabletop resists warping and damage from daily industrial use.
Main Features
- cuts automatically at 1 m/s
- 1 mm cutting precision
- handles rolls up to 320 cm wide
- expandable with LED backlight, speed adjustment and more
RollMaster Super cutting height is 5 mm.
For thicker materials, check out Super Plus model.
Thanks to the modular design, you can create a table tailored to your needs. Start with basic setup, add extensions later as your business grows.
Technical Specification
Cutting Table
| Cutting width | up to 320 cm |
| Length | 200 – 500 cm or other on request |
| Height | 86-89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
Cutting Device
| Cutting width | up to 320 cm |
| Length | 200 – 500 cm or other on request |
| Height | 86-89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
Control Features
| Cutting width | up to 320 cm |
| Length | 200 – 500 cm or other on request |
| Height | 86-89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
Other
| Cutting width | up to 320 cm |
| Length | 200 – 500 cm or other on request |
| Height | 86-89 cm, regulated |
| Frame | powder coated steel profiles |
| Table top | 25 mm, 2 mm PVC framed |
Simple Setup Process
Assemble RollMaster yourself and get started the same day. With our video tutorial, the installation process is as simple as joining lego bricks.
Moreover, the operator learns how to work with it in 30 minutes. No special training needed – just measure, set, and cut. Simple as that.
Watch the video and see how easy it is.
Send samples of your materials for testing
RollMaster Super cuts almost any kind of thin materials including cotton, linen, denim, silk, woven fabric, leather, polyester, films, technical textiles, synthetic fibres, filter materials and much more.
Not sure if your materials will cut perfectly?
Send us samples and receive a free video report with our expert analysis.
Maintenance & Support
Built to last decades, backed by support when you need it. Focus on production, we handle the rest.
assembly of the table
Step-by-step videos make assembly simple
service and spare parts
Fast response and spare parts shipped within 24 hours
video tutorials
24/7 access to troubleshooting guides
expanding the system
Frequently Asked Questions
What materials can RollMaster cut? Will it cut mine?
RollMaster can cut a wide range of materials including most woods, plastics, foams, fabrics, and soft metals like aluminum. If you’re unsure whether it can handle your specific material, feel free to contact us with details—chances are, it can!
How much does maintenance and service cost?
Maintenance and service costs can vary depending on usage and specific needs. We offer flexible support options to suit different requirements—please contact us for more details.
How long is the warranty?
We provide a standard 1-year warranty for all B2B customers.
Every RollMaster can be tailored to your needs
Choose size and features that match your production goals. Find your ideal setup in minutes.
